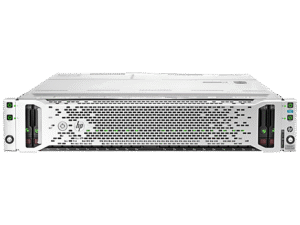

HPE ProLiant DL160 Gen10 – rack-mountable – Xeon Silver 4210R 2.4 GHz – 16

Cache Memory
Type :L3 cache
Installed Size :13.75 megabyte

RAM
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Installed Size :16 GB
Max Supported Size :1 TB
Configuration Features :1 x 16 GB
Slots Qty :16
Empty Slots :15
Memory Speed :2400 megahertz
Rated Memory Speed :2933 megahertz
Features :6-channel memory architecture, HPE SmartMemory, Registered

Type :Serial ATA
Bus Type :PCI Express 3.0 x4
Interface Type :Serial ATA-600
Storage Controller Name :HPE Smart Array S100i
Channel Qty :14
Installed Qty :1
RAID Level :RAID 0, RAID 1, RAID 10, RAID 5

Networking
Remote Management Controller :Integrated Lights-Out 5
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports :2 x Gigabit Ethernet
Remote Management Protocol :IPMI 2.0, SNMP 3
Features :PXE support, Wake on LAN (WoL)

Expansion Bays
Bays :4 (total) / 4 (free) x hot-swap 3.5″ LFF

Expansion Slots
Slots :1 (total) / 1 (free) x microSD Card (internal), 1 (total) / 1 (free) x PCIe 3.0 x16 – half-length, full-height, 1 (total) / 1 (free) x PCIe 3.0 x8 – low-profile

Interface Provided
Interfaces :1 x HPE iLO, 1 x HPE iLO – RJ-45, 1 x VGA, 2 x LAN (Gigabit Ethernet), 4 x USB 3.0 (1 front, 2 rear, 1 internal)

Power Device
Type :Power supply – hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Installed Qty :1
Max Supported Qty :2
Power Provided :500 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
80 PLUS Certification :80 PLUS Platinum

Service & Support Details
Service & Support :Limited warranty – parts and labor – 3 years – on-site – response time: next business day
