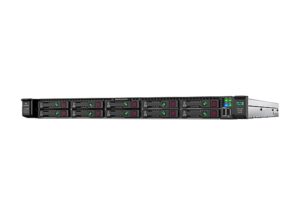

HPE ProLiant DL360 Gen9 Base – rack-mountable – Xeon E5-2630V4 2.2 GHz – 16

Cache Memory
Type :L3 cache
Per Processor Size :25 megabyte, 25 megabyte
Installed Size :25 megabyte

RAM
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Installed Size :16 GB
Max Supported Size :768 GB
Configuration Features :1 x 16 GB
Data Integrity Check :Advanced ECC
Slots Qty :24
Empty Slots :23
Memory Speed :2133 megahertz
Rated Memory Speed :2400 megahertz
Memory Specification Compliance :PC4-19200
Features :HP SmartMemory, Online Spare Memory, Quad channel memory architecture, Registered

Type :RAID
Bus Type :PCI Express 3.0 x8
Interface Type :Serial ATA-600 / SAS 3.0
Storage Controller Name :Smart Array P440ar with 2GB FBWC
Installed Qty :1
Buffer Size :2 GB, 2 GB
RAID Level :RAID 0, RAID 1, RAID 1 ADM, RAID 10, RAID 10 ADM, RAID 5, RAID 50, RAID 6, RAID 60

Networking
Ethernet Controller(s) :HP 331i
Remote Management Controller :Integrated Lights-Out 4
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports :4 x Gigabit Ethernet
Features :PXE support, Wake on LAN (WoL)
Compliant Standards :IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Expansion Bays
Bays :8 (total) / 8 (free) x hot-swap 2.5″ SFF

Expansion Slots
Slots :1 (total) / 1 (free) x FlexibleLOM, 1 (total) / 1 (free) x microSD Card (internal), 1 (total) / 1 (free) x PCIe 3.0 x16 – three-quarter-length, full-height, 1 (total) / 1 (free) x PCIe 3.0 x8 – low-profile

Interface Provided
Interfaces :1 x HP iLO, 1 x HPE iLO, 1 x serial, 1 x VGA, 4 x LAN (Gigabit Ethernet), 5 x USB 3.0 (1 front, 2 rear, 2 internal)

Power Device
Type :Power supply – hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Installed Qty :1
Max Supported Qty :2
Power Provided :500 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
80 PLUS Certification :80 PLUS Platinum

Service & Support Details
Service & Support :Limited warranty – parts and labor – 3 years – on-site – response time: next business day
