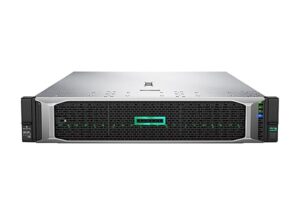

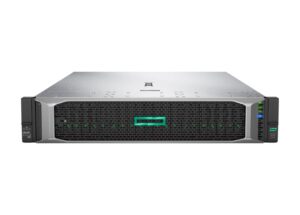

HPE ProLiant DL560 Gen10 Base – rack-mountable – Xeon Gold 6148 2.4 GHz – 1

(4789533)

Categories: Servers, HP ProLiant, Rackmount Servers, DL560 Gen10

Looking for a dense but highly scalable server for your data center application and virtualization needs? HPE ProLiant DL560 Gen10 Server is a high-density, 4P server with high-performance, scalability, and reliability, in a 2U chassis. Supporting the Intel Xeon Scalable processors with up to a 68% performance gain , the HPE ProLiant DL560 Gen10 Server offers greater processing power, up to 3 TB of faster memory, and I/O of up to eight PCIe 3.0 slots. In addition if offers the intelligence and simplicity of automated management with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). The HPE ProLiant DL560 Gen10 Server is the ideal server for business-critical workloads, virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.

Call for Pricing

Product Specifications

System Features

Chassis
Form Factor :Rack-mountable
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot-swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Hot-Swap Bays Qty :8
Built-in Devices :Battery, LED panel

Processor
Type :Xeon Gold
Number of Cores :20-core
Processor Number :6148
Installed Qty :4
Max Supported Qty :4
Server Scalability :4-way
Upgradability :Upgradable
Manufacturer :Intel
Clock Speed :2.4 GHZ
Processor Main Features :Hyper-Threading Technology, Intel Turbo Boost Technology

Memory

Cache Memory
Type :L3 cache
Per Processor Size :27.5 megabyte, 27.5 megabyte
Installed Size :110 megabyte

RAM
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Installed Size :128 GB
Max Supported Size :3 TB
Configuration Features :8 x 16 GB
Slots Qty :24
Empty Slots :16
Memory Speed :2666 megahertz
Rated Memory Speed :2666 megahertz
Memory Specification Compliance :PC4-20800
Features :6-channel memory architecture, Dual rank, Registered

Storage

Type :RAID
Interface Type :Serial ATA-600 / SAS 3.0
Storage Controller Name :HPE Smart Array P408i-a
Channel Qty :8
Installed Qty :1
Buffer Size :2 GB, 2 GB
RAID Level :RAID 0, RAID 1, RAID 1 ADM, RAID 10, RAID 10 ADM, RAID 5, RAID 50, RAID 6, RAID 60

Server Management

Networking
Ethernet Controller(s) :HPE 533FLR-T
Remote Management Controller :Integrated Lights-Out 5
Interface (Bus) Type :FlexibleLOM
Data Link Protocol :10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports :2 x 10 Gigabit Ethernet
Features :PXE support, Wake on LAN (WoL)
Compliant Standards :IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Expansion Bays
Bays :1 (total) / 1 (free) x external, 8 (total) / 8 (free) x hot-swap 2.5″ SFF

Expansion Slots
Slots :1 (total) / 0 (free) x FlexibleLOM, 1 (total) / 1 (free) x microSD Card (internal), 2 (total) / 2 (free) x PCIe 3.0 x16 – three-quarter-length, full-height, 24 (total) / 16 (free) x DIMM 288-pin, 4 (total) / 0 (free) x CPU, 4 (total) / 4 (free) x PCIe 3.0 x8 – three-quarter-length, full-height

Interface Provided
Interfaces :1 x HP iLO – RJ-45, 1 x HP iLO – Type A (1 in front), 1 x HPE iLO – RJ-45, 1 x HPE iLO – Type A (1 in front), 1 x serial (1 rear), 1 x VGA (1 rear), 2 x LAN (Gigabit Ethernet), 2 x USB 2.0 (2 rear), 5 x USB 3.0 (1 front, 2 rear, 2 internal)

Others

Power Device
Type :Power supply – hot-plug
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Power Provided :1600 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Efficiency :94%
80 PLUS Certification :80 PLUS Platinum

What's Include

Service & Support Details
Service & Support :Limited warranty – parts and labor – 3 years – on-site – response time: next business day
