Categories: Servers, HP ProLiant, Tower Servers, ML350 Gen10

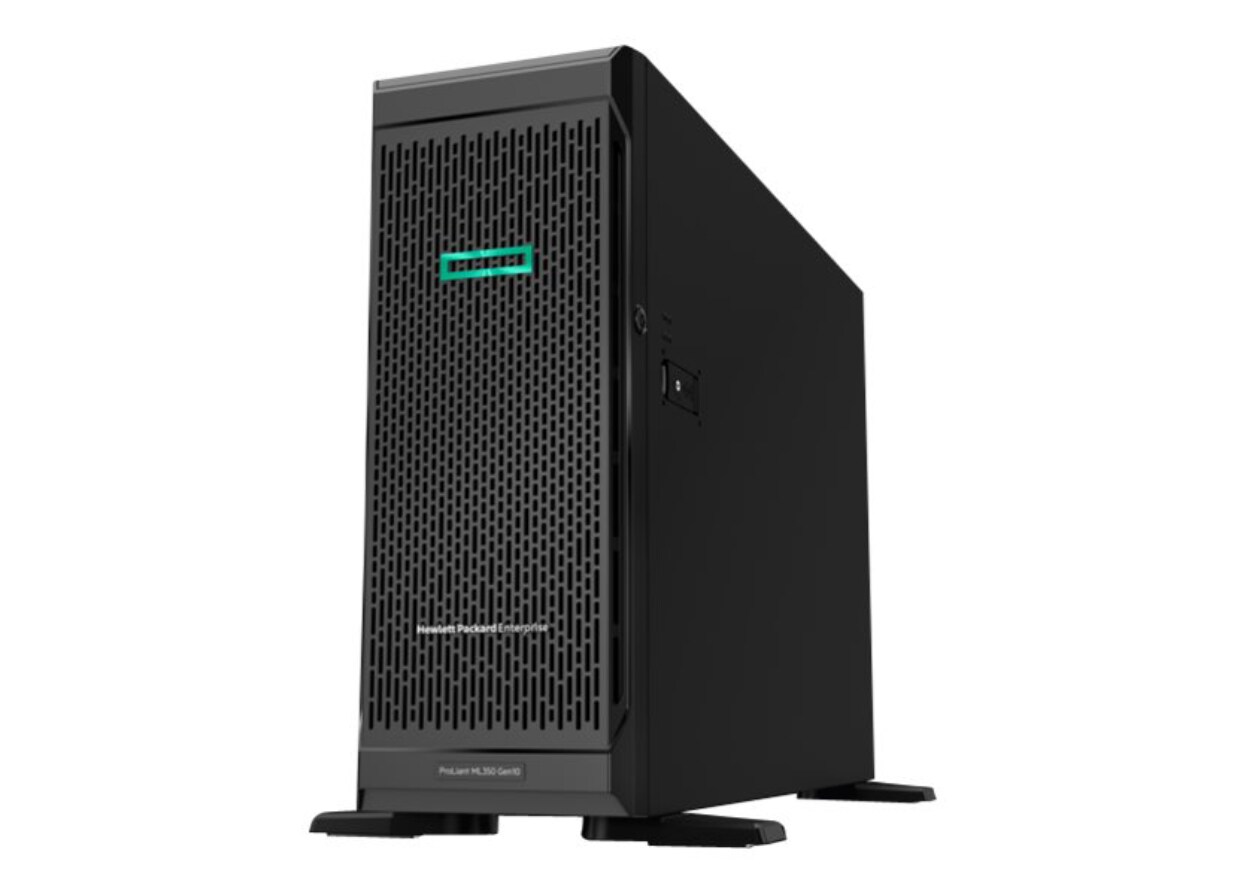

Do you need a robust server for your SMB and remote offices? HPE ProLiant ML350 Gen10 Server delivers a secure dual-socket tower server with performance, expandability, and proven reliability making it the choice for expanding SMBs, remote offices of larger businesses, and enterprise data centers. HPE ML350 Gen10 Server leverages the Intel Xeon Scalable processors with up to 71% performance gain and 27% increase in cores , along with the 2666 MT/s HPE DDR4 SmartMemory supports up to 3.0 TB and 11% faster than 2400 MT/s. The shorter re-designed rackable chassis with multiple upgrade options provides flexibility that can expand as your business needs grow. It supports 12 Gb/s SAS, NVMe SSD, embedded 4x1GbE NIC with a broad range of graphics and compute options. Supported by the HPE Pointnext industry-leading service organization and ease of deployment, HPE ML350 Gen10 Server helps you transform to a digital business with more agility and all within your limited IT budget.
Chassis
Form Factor :Tower
Manufacturer Form Factor :Tower
Server Storage Bays :Non-hot-swap
Server Swappable Drive Form Factor :3.5″
Server Swappable Drive Form Factor (metric) :8.9 cm
Server Swappable Drive Interface :SATA
Internal Bays Qty :4
Front Accessible Bays Qty :1
Processor
Type :Xeon Bronze
Number of Cores :6-core
Processor Number :3104
Installed Qty :1
Max Supported Qty :2
Server Scalability :2-way
Upgradability :Upgradable
Manufacturer :Intel
Clock Speed :1.7 GHZ
Cache Memory
Type :L3 cache
Per Processor Size :8.25 megabyte
Installed Size :8.25 megabyte
RAM
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Installed Size :8 GB
Max Supported Size :1.5 TB, 768 TB
Configuration Features :1 x 8 GB
Data Integrity Check :Advanced ECC
Slots Qty :24
Empty Slots :23
Memory Speed :2133 megahertz
Memory Specification Compliance :PC4-20800
Rated Memory Speed :2666 megahertz
Features :6-channel memory architecture, HPE SmartMemory, Online Spare Memory, Registered, Slots 13 – 24 are available in two-processor configuration only
Type :RAID
Interface Type :Serial ATA-600
Storage Controller Name :HPE Smart Array S100i SR Software
Channel Qty :14
Networking
Ethernet Controller(s) :HP 369i
Remote Management Controller :Integrated Lights-Out Standard
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports :4 x Gigabit Ethernet
Features :PXE support, Wake on LAN (WoL)
Compliant Standards :IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Expansion Bays
Bays :1 (total) / 1 (free) x external 5.25″ Slim Line, 4 (total) / 4 (free) x 3.5″ LFF
Expansion Slots
Slots :1 (total) / 1 (free) x microSD Card (internal), 1 (total) / 1 (free) x PCIe 2.0 x8 – half-length, full-height (x4 mode), 1 (total) / 1 (free) x PCIe 3.0 x16 – full-length, full-height (x8 mode), 3 (total) / 3 (free) x PCIe 3.0 x16 – full-length, full-height, 4 (total) / 4 (free) x PCIe 3.0 x8 – full-length, full-height (x4 mode)
Interface Provided
Interfaces :1 x HP iLO, 1 x serial, 1 x USB 2.0 (1 internal), 1 x VGA, 4 x LAN (Gigabit Ethernet), 5 x USB 3.0 (2 front, 2 rear, 1 internal)
Power Device
Type :Power supply
Installed Qty :1
Power Provided :500 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Service & Support Details
Service & Support :Limited warranty – parts and labor – 3 years – on-site – response time: next business day
