Categories: Servers, HP ProLiant, Rackmount Servers, DL360 Gen10

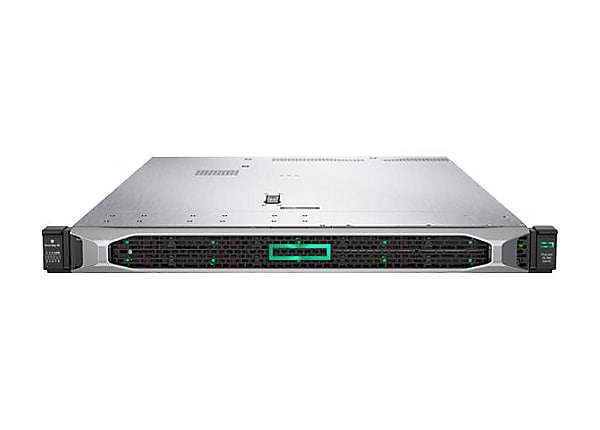

Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain and 27% increase in cores, along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB with an increase in performance of up to 82%. With the added performance that HPE Persistent Memory, HPE NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.
Chassis
Form Factor :Rack-mountable
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot-swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS, SATA/SAS
Hot-Swap Bays Qty :8
Processor
Type :Xeon Gold
Number of Cores :8-core
Processor Number :6250
Installed Qty :1
Max Supported Qty :2
Server Scalability :2-way
Upgradability :Upgradable
Manufacturer :Intel
Clock Speed :3.9 GHZ
Max Turbo Speed :4.5 GHZ
Processor Main Features :Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory
Type :L3 cache
Per Processor Size :35.75 megabyte
Installed Size :35.75 megabyte
RAM
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Installed Size :32 GB
Max Supported Size :1.5 TB, 768 TB
Configuration Features :1 x 32 GB
Data Integrity Check :Advanced ECC
Slots Qty :12, 24
Empty Slots :11, 23
Memory Speed :2933 megahertz
Rated Memory Speed :2933 megahertz
Features :HPE SmartMemory, Registered, Slots 13 – 24 are available in two-processor configuration only
Type :Serial ATA
Interface Type :Serial ATA-600
Storage Controller Name :HPE Smart Array S100i SR Software
Channel Qty :14
Installed Qty :1
Networking
Ethernet Controller(s) :HPE 366FLR, HPE 562FLR-T
Remote Management Controller :Integrated Lights-Out 5
Data Link Protocol :10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports :2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet
Remote Management Protocol :IPMI 2.0, SMASH CLP, SNMP 3
Features :PXE support, Wake on LAN (WoL)
Expansion Bays
Bays :1 (total) / 1 (free) x external Universal Media Bay, 8 (total) / 8 (free) x hot-swap 2.5″ SFF
Expansion Slots
Slots :1 (total) / 1 (free) x FlexibleLOM – three-quarter-length, full-height (low-profile), 1 (total) / 1 (free) x microSD Card (internal), 1 (total) / 1 (free) x PCIe 3.0 x16 – three-quarter-length, full-height, 1 (total) / 1 (free) x PCIe 3.0 x8 – low-profile, 1 (total) / 1 (free) x PCIe x16 – full-height
Interface Provided
Interfaces :1 x HPE iLO – RJ-45, 1 x HPE iLO – RJ-45 (1 rear), 1 x HPE iLO – Type A (1 in front), 1 x VGA, 1 x VGA (1 rear), 2 x LAN (10Gigabit Ethernet) – RJ-45, 4 x LAN (Gigabit Ethernet) – RJ-45 (4 rear), 5 x USB 3.0 (1 front, 2 rear, 2 internal)
Power Device
Type :Power supply – hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Installed Qty :1
Max Supported Qty :2
Power Provided :800 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
80 PLUS Certification :80 PLUS Platinum
Service & Support Details
Service & Support :Limited warranty – parts and labor – 3 years – on-site
